Offshore Oil and Gas Valves: 7 Selection Factors

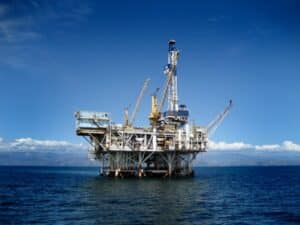

Offshore Oil and Gas Valves are critical flow-control components used on offshore platforms, floating production facilities, subsea equipment, export pipelines, injection systems, seawater circuits, and oil and natural gas transportation networks.
Pipeline transportation is one of the core links between offshore production, processing, storage, and onshore delivery. Valves must operate reliably under high pressure, corrosive seawater exposure, vibration, limited maintenance access, and changing flow conditions.
Check valves are particularly important because they close automatically when flow reverses. Correctly selected check valves help protect pumps, compressors, pipelines, and process equipment from reverse flow and related pressure surges.
JST Valve supplies corrosion-resistant, high-pressure, severe-service, and customized valve solutions for offshore oil, natural gas, seawater, chemical injection, and marine pipeline applications.
Typical Applications
Offshore platforms, FPSO facilities, subsea pipelines, production manifolds, injection systems, loading terminals, and seawater systems.
Common Process Media
Crude oil, natural gas, produced water, seawater, chemicals, condensate, multiphase fluids, carbon dioxide, and hydrogen sulfide-containing media.
Common Valve Types
Check valves, trunnion ball valves, gate valves, butterfly valves, control valves, emergency shutdown valves, and double block and bleed valves.
Where Are Offshore Oil and Gas Valves Used?
Offshore Oil and Gas Valves are installed throughout production, separation, treatment, compression, injection, storage, loading, export, and safety systems.
- Subsea production trees and manifolds
- Offshore platform process and utility piping
- Crude oil and natural gas export pipelines
- Gas compression and pump-discharge systems
- Water injection and chemical injection systems
- Produced-water treatment and disposal systems
- Seawater cooling and firewater networks
- FPSO loading, unloading, storage, and offloading systems
- Emergency shutdown and pressure-protection systems
Why Check Valves Matter in Offshore Pipelines
A check valve allows flow in the intended direction and closes automatically when the flow begins to reverse. It does not require a separate operator for normal opening and closing.
In offshore pipelines, reverse flow can occur after pump or compressor shutdown, sudden changes in downstream pressure, equipment trips, or changes in production conditions.
A suitable check valve helps limit reverse flow, protects rotating equipment, maintains pipeline direction, and reduces the risk of damage caused by uncontrolled backflow.
Closing response is especially important. A valve that closes too slowly may permit a large reverse-flow velocity, while an unstable or oversized valve may repeatedly open and close, causing vibration, impact, wear, and pressure fluctuations.
Engineering Note
A check valve prevents reverse flow, but it is not a pressure-control valve. Protection against pressure surges requires a complete system evaluation that may include valve dynamics, closing time, pipeline volume, pump or compressor behaviour, control logic, and pressure-relief equipment.
7 Selection Factors for Offshore Oil and Gas Valves
1. Process Medium and Flow Conditions
Identify the complete medium, including crude oil, natural gas, condensate, seawater, produced water, chemicals, solids, carbon dioxide, and hydrogen sulfide. Flow rate, density, viscosity, gas fraction, and multiphase behaviour also affect valve selection.
2. Pressure and Differential Pressure
Operating pressure, design pressure, shut-off differential pressure, transient pressure, and possible blocked-in pressure determine valve rating, body strength, seat loading, disc forces, and actuator requirements.
3. Check Valve Closing Response
Check valve design should match the expected flow velocity, minimum flow, reverse-flow acceleration, installation orientation, and system dynamics. Nozzle, axial-flow, dual-plate, swing, lift, and single-plate designs have different operating characteristics.
4. Seawater and Corrosion Resistance
Offshore valves may be exposed internally or externally to seawater, chlorides, humid salt air, produced water, sour gas, and chemical additives. Duplex steel, super duplex steel, super austenitic steel, Monel, nickel aluminium bronze, titanium, Hastelloy, or nickel alloys may be evaluated according to the complete service conditions.
5. Sand, Solids, and Erosion
Produced fluids may contain sand, scale, corrosion products, or other particles. High velocity and pressure drop can erode seats, discs, balls, cages, and internal flow passages. Hard-facing, protected sealing surfaces, suitable clearances, or erosion-resistant materials may be required.
6. Fire Safety, Emissions, and Isolation
Offshore hydrocarbon systems may require fire-tested designs, anti-static construction, blowout-resistant stems, controlled fugitive emissions, tight shut-off, double isolation, or emergency shutdown functions. Exact requirements must be confirmed from the project specification.
7. Automation, Testing, and Maintenance
Limited offshore access makes reliability and maintainability particularly important. Pneumatic, hydraulic, electric, or electro-hydraulic actuators may require remote control, position feedback, fail-safe action, partial-stroke testing, and hazardous-area protection.
Common Check Valve Types for Offshore Service
| Check Valve Type | Typical Application | Main Selection Focus |
|---|---|---|
| Axial or Nozzle Check Valves | High-pressure gas, compressor discharge, pump protection, and applications requiring rapid closing response. | Flow velocity, spring force, pressure drop, dynamic response, minimum flow, vibration, and reverse-flow acceleration. |
| Dual-Plate Check Valves | Compact offshore piping, seawater systems, utility lines, produced water, and larger pipeline sizes. | Spring selection, plate stability, installation direction, pressure loss, corrosion, hinge wear, and closing response. |
| Swing Check Valves | Oil, water, utility, injection, and pipeline services where full opening and low flow restriction are important. | Orientation, disc travel, minimum velocity, slam risk, hinge condition, closure assistance, and maintenance access. |
| Lift or Piston Check Valves | Smaller high-pressure lines, chemical injection, clean fluids, and selected process services. | Cleanliness, pressure drop, installation position, spring loading, seat sealing, sticking risk, and operating frequency. |
On mobile devices, swipe horizontally to view the complete table.
How Offshore Oil and Gas Valves Improve Pipeline Safety
Properly selected Offshore Oil and Gas Valves help maintain the intended direction of flow, isolate equipment, limit reverse flow, control production conditions, and support safe shutdown sequences.
Suitable check valve dynamics can reduce disc impact, unstable cycling, vibration, and reverse-flow-related pressure disturbances.
Corrosion-resistant materials, reliable sealing, correct pressure ratings, and appropriate testing also help reduce offshore maintenance requirements and unplanned production interruptions.
Why Choose JST Valve?
JST Valve supplies Offshore Oil and Gas Valves for crude oil, natural gas, seawater, produced water, chemicals, condensate, corrosive media, and high-pressure pipeline systems.
- Axial, nozzle, dual-plate, swing, single-plate, and lift check valve options
- Duplex, super duplex, super austenitic, Monel, Hastelloy, Inconel, titanium, nickel alloy, and nickel aluminium bronze materials
- High-pressure and severe-service valve structures
- Corrosion-resistant solutions for seawater and marine environments
- Pneumatic, electric, hydraulic, and fail-safe actuator packages
- Customized testing, inspection, drawings, and project documentation
Explore JST Valve products for offshore pipelines, seawater systems, marine facilities, and oil and natural gas applications.
Information Required for Valve Selection
For an accurate Offshore Oil and Gas Valve recommendation, please provide:
- Process medium and complete chemical composition
- Gas, liquid, or multiphase flow conditions
- Operating and design temperature
- Operating pressure and maximum differential pressure
- Normal, minimum, and maximum flow rate
- Reverse-flow velocity or transient data where available
- Valve type, size, pressure class, and connection standard
- Installation direction and pipeline orientation
- Sour-service, fire-test, emission, and material requirements
- Required leakage, testing, inspection, and certification scope
- Actuator, control signal, fail position, and operating-time requirements
Technical References
Additional information about offshore pipelines, oil and natural gas flow control, and pipeline valve requirements is available from these technical resources:
- API Specification 6D for Pipeline and Piping Valves
- DNV-ST-F101 Submarine Pipeline Systems
- Flowserve Upstream Oil and Gas Applications
Frequently Asked Questions
What is the purpose of a check valve in an offshore pipeline?
A check valve permits flow in the intended direction and closes when reverse flow develops. It helps protect pumps, compressors, pipelines, and process equipment from uncontrolled backflow.
Can check valves prevent pressure surges?
A fast and stable closing response can help reduce reverse-flow-related pressure disturbances. However, surge protection requires analysis of the complete pipeline system and should not rely on the check valve alone.
Which check valve is suitable for natural gas pipelines?
Axial-flow or nozzle check valves are often evaluated for high-pressure gas and compressor-discharge service. Final selection depends on flow rate, pressure drop, minimum velocity, reverse-flow dynamics, orientation, materials, and project standards.
Which materials are suitable for offshore seawater valves?
Duplex steel, super duplex steel, super austenitic steel, nickel aluminium bronze, Monel, titanium, and selected nickel alloys may be considered. Final material selection must use complete seawater, temperature, pressure, velocity, oxygen, chlorination, and corrosion data.
Can JST Valve manufacture customized offshore check valves?
JST Valve can evaluate customized check valve structures, materials, dimensions, connections, springs, sealing systems, inspection plans, testing requirements, and documentation according to customer project data.
