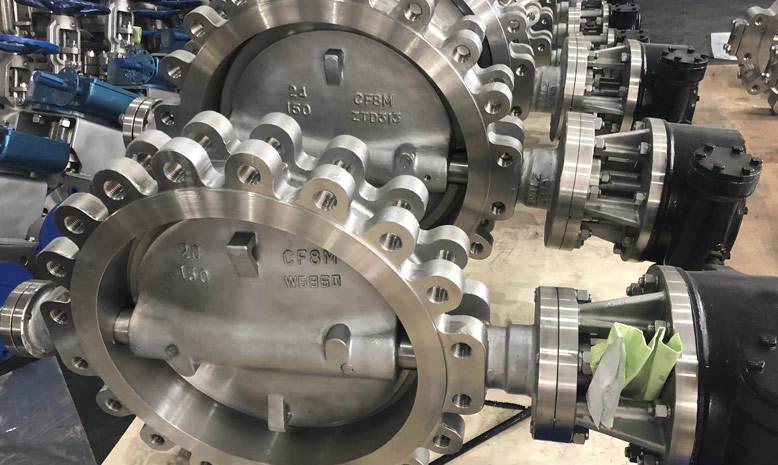

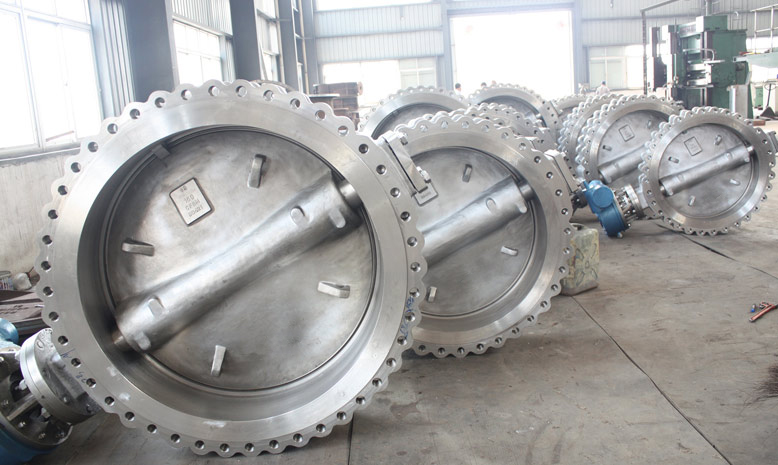

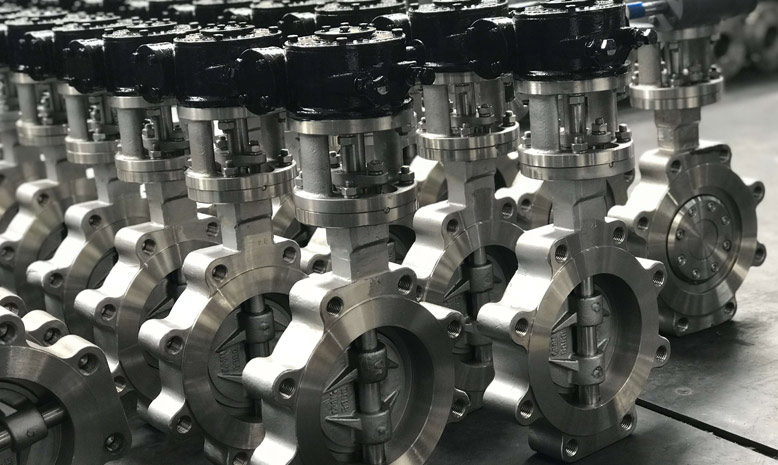

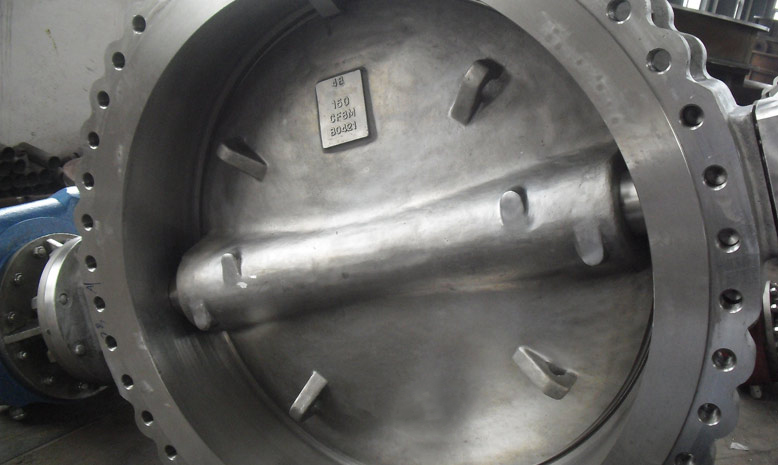

Stainless Steel Butterfly Valves
Stainless steel butterfly valves bringing light weight to applications with low cost, jst High performance butterfly valves from 2″ to 100″.
Description
Application Of Stainless Steel Butterfly Valves
Common applications for stainless steel butterfly valves include: utilities, pulp and paper, oil and gas production, fuel handling systems, marine, petrochemical processing, etc.
Stainless Steel Butterfly Valves Structure (SS316 double offset butterfly valve for example)
| No. | Parts | Material |
|---|---|---|
| 1 | Gasket | Graphite |
| 2 | Body | A351 CF8M |
| 3 | Seat | 316+graphite |
| 4 | Screw | SS316 |
| 5 | Seat retainer | A182 F316 |
| 6 | Disc | A351 CF8M |
| 7 | Stem | 17-4PH |
| 8 | Pin | 17-4PH |
| 9 | Bearing | 316+graphite |
| 10 | Nut | A194 8 |
| 11 | Stud | A193 B8 |
| 12 | Packing | Graphite |
| 13 | Gland bushing | A182 F316 |
| 14 | Bracket | A351 CF8 |
| 15 | Key | UNS G10450 |
| 16 | Gearbox device | CF8M / WCB |
>
